Mouse TFR2 (Transferrin Receptor Protein 2) ELISA Kit (MOES01578)
- SKU:
- MOES01578
- Product Type:
- ELISA Kit
- Size:
- 96 Assays
- Uniprot:
- Q9JKX3
- Sensitivity:
- 0.94ng/mL
- Range:
- 1.56-100ng/mL
- ELISA Type:
- Sandwich
- Reactivity:
- Mouse
- Sample Type:
- Serum, plasma and other biological fluids
Description
Mouse TFR2 (Transferrin Receptor Protein 2) ELISA Kit
The Mouse TFR2 (Transferrin Receptor Protein 2) ELISA Kit is a reliable and precise tool for the quantitative measurement of TFR2 levels in mouse serum, plasma, and cell culture supernatants. This kit boasts excellent sensitivity and specificity, ensuring accurate and consistent results for a variety of research applications.TFR2 is a key protein involved in cellular iron uptake and homeostasis. Dysregulation of TFR2 has been linked to various diseases, including hemochromatosis and liver disorders.
By measuring TFR2 levels, researchers can gain valuable insights into these conditions and potentially identify new therapeutic targets.The Mouse TFR2 ELISA Kit is a valuable asset for studying iron metabolism and its role in disease pathogenesis, providing researchers with a powerful tool for advancing scientific knowledge and developing novel treatment strategies.
| Assay type: | Sandwich |
| Format: | 96T |
| Assay time: | 4.5h |
| Reactivity: | Mouse |
| Detection Method: | Colormetric |
| Detection Range: | 1.56-100 ng/mL |
| Sensitivity: | 0.94 ng/mL |
| Sample Volume Required Per Well: | 100µL |
| Sample Type: | Serum, plasma and other biological fluids |
| Specificity: | This kit recognizes Mouse TFR2 in samples. No significant cross-reactivity or interference between Mouse TFR2 and analogues was observed. |
This ELISA kit uses Sandwich-ELISA as the method. The micro ELISA plate provided in this kit has been pre-coated with an antibody specific to Mouse TFR2. Standards or samples are added to the appropriate micro ELISA plate wells and combined with the specific antibody. Then a biotinylated detection antibody specific for Mouse TFR2 and Avidin-Horseradish Peroxidase (HRP) conjugate are added to each micro plate well successively and incubated. Free components are washed away. The substrate solution is added to each well. Only those wells that contain Mouse TFR2, biotinylated detection antibody and Avidin-HRP conjugate will appear blue in color. The enzyme-substrate reaction is terminated by adding Stop Solution and the color turns yellow. The optical density (OD) is measured spectrophotometrically at a wavelength of 450 nm ± 2 nm. The OD value is proportional to the concentration of Mouse TFR2. The concentration of Mouse TFR2 in samples can be calculated by comparing the OD of the samples to the standard curve.
| UniProt Protein Function: | TFR2: Mediates cellular uptake of transferrin-bound iron in a non-iron dependent manner. May be involved in iron metabolism, hepatocyte function and erythrocyte differentiation. Defects in TFR2 are a cause of hemochromatosis type 3 (HFE3). HFE3 is a disorder of iron hemostasis resulting in iron overload and has a phenotype indistinguishable from that of hereditary hemochromatosis (HH). HH is characterized by abnormal intestinal iron absorption and progressive increase of total body iron, which results in midlife in clinical complications including cirrhosis, cardiopathy, diabetes, endocrine dysfunctions, arthropathy, and susceptibility to liver cancer. Since the disease complications can be effectively prevented by regular phlebotomies, early diagnosis is most important to provide a normal life expectancy to the affected subjects. Belongs to the peptidase M28 family. M28B subfamily. 3 isoforms of the human protein are produced by alternative splicing. |
| UniProt Protein Details: | Protein type:Receptor, misc. ; Membrane protein, integral Cellular Component: membrane; cell; cytoplasm; plasma membrane; integral to membrane Molecular Function:transferrin receptor activity Biological Process: receptor-mediated endocytosis; iron ion homeostasis; cellular iron ion homeostasis |
| UniProt Code: | Q9JKX3 |
| NCBI GenInfo Identifier: | 20140821 |
| NCBI Gene ID: | 50765 |
| NCBI Accession: | Q9JKX3. 2 |
| UniProt Related Accession: | Q9JKX3 |
| Molecular Weight: | Predicted MW: 36. 8kDaAccurate MW: 37kDa |
| NCBI Full Name: | Transferrin receptor protein 2 |
| NCBI Synonym Full Names: | transferrin receptor 2 |
| NCBI Official Symbol: | Tfr2 |
| NCBI Official Synonym Symbols: | Trfr2 |
| NCBI Protein Information: | transferrin receptor protein 2 |
| UniProt Protein Name: | Transferrin receptor protein 2 |
| Protein Family: | Transferrin receptor protein |
| UniProt Gene Name: | Tfr2 |
| UniProt Entry Name: | TFR2_MOUSE |

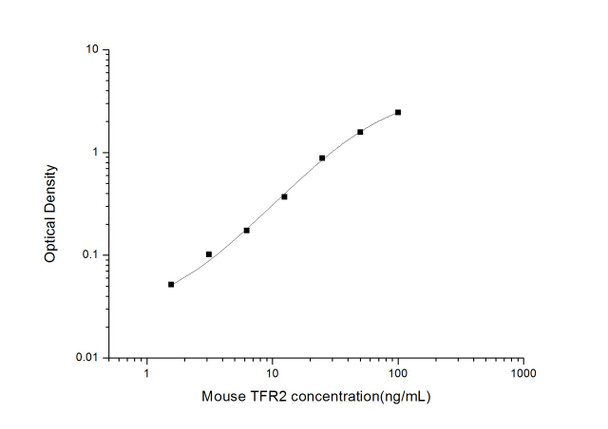

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e. g. operator, pipetting technique, washing technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data is provided below for reference only.
| Concentration (ng/mL) | O.D | Average | Corrected |
| 100 | 2.505 2.551 | 2.528 | 2.449 |
| 50 | 1.65 1.66 | 1.655 | 1.576 |
| 25 | 0.984 0.944 | 0.964 | 0.885 |
| 12.5 | 0.437 0.459 | 0.448 | 0.369 |
| 6.25 | 0.266 0.24 | 0.253 | 0.174 |
| 3.13 | 0.195 0.167 | 0.181 | 0.102 |
| 1.56 | 0.128 0.134 | 0.131 | 0.052 |
| 0 | 0.074 0.084 | 0.079 | -- |
Precision
Intra-assay Precision (Precision within an assay): 3 samples with low, mid range and high level Mouse TFR2 were tested 20 times on one plate, respectively.
Inter-assay Precision (Precision between assays): 3 samples with low, mid range and high level Mouse TFR2 were tested on 3 different plates, 20 replicates in each plate.
| Intra-assay Precision | Inter-assay Precision | |||||
| Sample | 1 | 2 | 3 | 1 | 2 | 3 |
| n | 20 | 20 | 20 | 20 | 20 | 20 |
| Mean (ng/mL) | 5.14 | 15.93 | 49.62 | 5.16 | 15.55 | 51.90 |
| Standard deviation | 0.30 | 0.67 | 2.61 | 0.30 | 0.86 | 2.74 |
| C V (%) | 5.84 | 4.21 | 5.26 | 5.81 | 5.53 | 5.28 |
Recovery
The recovery of Mouse TFR2 spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.
| Sample Type | Range (%) | Average Recovery (%) |
| Serum (n=5) | 89-106 | 96 |
| EDTA plasma (n=5) | 92-107 | 99 |
| Cell culture media (n=5) | 90-106 | 97 |
Linearity
Samples were spiked with high concentrations of Mouse TFR2 and diluted with Reference Standard & Sample Diluent to produce samples with values within the range of the assay.
| Serum (n=5) | EDTA plasma (n=5) | Cell culture media (n=5) | ||
| 1:2 | Range (%) | 97-108 | 88-105 | 83-99 |
| Average (%) | 103 | 96 | 90 | |
| 1:4 | Range (%) | 93-105 | 82-93 | 86-97 |
| Average (%) | 99 | 87 | 92 | |
| 1:8 | Range (%) | 88-100 | 84-96 | 86-98 |
| Average (%) | 93 | 91 | 91 | |
| 1:16 | Range (%) | 90-103 | 87-100 | 83-97 |
| Average (%) | 95 | 93 | 89 |
An unopened kit can be stored at 4°C for 1 month. If the kit is not used within 1 month, store the items separately according to the following conditions once the kit is received.
| Item | Specifications | Storage |
| Micro ELISA Plate(Dismountable) | 8 wells ×12 strips | -20°C, 6 months |
| Reference Standard | 2 vials | |
| Concentrated Biotinylated Detection Ab (100×) | 1 vial, 120 µL | |
| Concentrated HRP Conjugate (100×) | 1 vial, 120 µL | -20°C(shading light), 6 months |
| Reference Standard & Sample Diluent | 1 vial, 20 mL | 4°C, 6 months |
| Biotinylated Detection Ab Diluent | 1 vial, 14 mL | |
| HRP Conjugate Diluent | 1 vial, 14 mL | |
| Concentrated Wash Buffer (25×) | 1 vial, 30 mL | |
| Substrate Reagent | 1 vial, 10 mL | 4°C(shading light) |
| Stop Solution | 1 vial, 10 mL | 4°C |
| Plate Sealer | 5 pieces | |
| Product Description | 1 copy | |
| Certificate of Analysis | 1 copy |
- Set standard, test sample and control (zero) wells on the pre-coated plate and record theirpositions. It is recommended to measure each standard and sample in duplicate. Note: addall solutions to the bottom of the plate wells while avoiding contact with the well walls. Ensuresolutions do not foam when adding to the wells.
- Aliquot 100µl of standard solutions into the standard wells.
- Add 100µl of Sample / Standard dilution buffer into the control (zero) well.
- Add 100µl of properly diluted sample (serum, plasma, tissue homogenates and otherbiological fluids) into test sample wells.
- Cover the plate with the sealer provided in the kit and incubate for 90 min at 37°C.
- Aspirate the liquid from each well, do not wash. Immediately add 100µL of BiotinylatedDetection Ab working solution to each well. Cover the plate with a plate seal and gently mix. Incubate for 1 hour at 37°C.
- Aspirate or decant the solution from the plate and add 350µL of wash buffer to each welland incubate for 1-2 minutes at room temperature. Aspirate the solution from each well andclap the plate on absorbent filter paper to dry. Repeat this process 3 times. Note: a microplatewasher can be used in this step and other wash steps.
- Add 100µL of HRP Conjugate working solution to each well. Cover with a plate seal andincubate for 30 min at 37°C.
- Aspirate or decant the solution from each well. Repeat the wash process for five times asconducted in step 7.
- Add 90µL of Substrate Reagent to each well. Cover with a new plate seal and incubate forapproximately 15 min at 37°C. Protect the plate from light. Note: the reaction time can beshortened or extended according to the actual color change, but not by more than 30min.
- Add 50 µL of Stop Solution to each well. Note: Adding the stop solution should be done inthe same order as the substrate solution.
- Determine the optical density (OD value) of each well immediately with a microplate readerset at 450 nm.
