IKK-alpha/beta (Phospho-Ser180/181) Colorimetric Cell-Based ELISA Kit

(No reviews yet) Write a Review
SKU:
CBCAB00231
Product Type:
ELISA Kit
ELISA Type:
Cell Based Phospho Specific
Reactivity:
Human
Mouse
Rat
Detection Method:
Colorimetric
Frequently bought together:

Description

system_update_altDatasheetMSDS

IKK-alpha/beta (Phospho-Ser180/181)Colorimetric Cell-Based ELISA Kit

The IKK alpha/beta Phospho-Ser180/181 Colorimetric Cell-Based ELISA Kit is specifically designed for the accurate detection of IKK alpha/beta phosphorylation at Ser180/181 in cell lysates. This kit offers high sensitivity and specificity, ensuring precise and reliable results for researchers studying signaling pathways involved in inflammation, immunity, and cell survival.IKK alpha/beta is a key regulator of the NF-kB signaling pathway, playing a critical role in the modulation of immune and inflammatory responses. Phosphorylation at Ser180/181 is known to regulate the activity of IKK alpha/beta, making it a crucial target for understanding cellular signaling events in various disease states.

With its easy-to-use protocol and robust performance, the IKK alpha/beta Phospho-Ser180/181 Colorimetric Cell-Based ELISA Kit is an essential tool for researchers looking to investigate the molecular mechanisms underlying inflammation, autoimmune diseases, and cancer. Get accurate and reproducible results with this innovative ELISA kit from AssayGenie.

Product Name:IKK-alpha/beta (Phospho-Ser180/181) Colorimetric Cell-Based ELISA
Product Code:CBCAB00231
ELISA Type:Cell-Based
Target:IKK-alpha/beta (Phospho-Ser180/181)
Reactivity:Human, Mouse, Rat
Dynamic Range:> 5000 Cells
Detection Method:Colorimetric 450 nm
Format:2 x 96-Well Microplates

The IKK-alpha/beta (Phospho-Ser180/181) Colorimetric Cell-Based ELISA Kit is a convenient, lysate-free, high throughput and sensitive assay kit that can detect IKK-alpha/beta protein phosphorylation and expression profile in cells. The kit can be used for measuring the relative amounts of phosphorylated IKK-alpha/beta in cultured cells as well as screening for the effects that various treatments, inhibitors (ie. siRNA or chemicals), or activators have on IKK-alpha/beta phosphorylation.

Qualitative determination of IKK-alpha/beta (Phospho-Ser180/181) concentration is achieved by an indirect ELISA format. In essence, IKK-alpha/beta (Phospho-Ser180/181) is captured by IKK-alpha/beta (Phospho-Ser180/181)-specific primary antibodies while the HRP-conjugated secondary antibodies bind the Fc region of the primary antibody. Through this binding, the HRP enzyme conjugated to the secondary antibody can catalyze a colorimetric reaction upon substrate addition. Due to the qualitative nature of the Cell-Based ELISA, multiple normalization methods are needed:

1. A monoclonal antibody specific for human GAPDH is included to serve as an internal positive control in normalizing the target absorbance values.
2. Following the colorimetric measurement of HRP activity via substrate addition, the Crystal Violet whole-cell staining method may be used to determine cell density. After staining, the results can be analysed by normalizing the absorbance values to cell amounts, by which the plating difference can be adjusted.
Database Information:Gene ID: 1147/3551, UniProt ID: O15111/O14920, OMIM: 600664/603258, Unigene: Hs.198998/Hs.656458
Gene Symbol:CHUK/IKBKB
Sub Type:Phospho
UniProt Protein Function:IKKA: a kinase of the IKK family. Phosphorylates inhibitors of NF-kappa-B, leading to their dissociation from NF-kappa-B and ultimately to their degradation. Phosphorylated and activated downstream of growth factor receptors, IL1R, and TNFR by NAK, IRAK and NIK, respectively. Preferentially found as a heterodimer with IKK-beta but also as an homodimer. Directly interacts with IKK-gamma/NEMO and TRPC4AP. Heterodimers form the active complex. The tripartite complex can also bind to MAP3K14/NIK, MEKK1, IKAP and IKB-alpha-p65-p50 complex. Inhibitors are under development to treat arthritis, inflammation, and apoptotic aspects of cancer. Aspirin (sodium salicylate) selectively binds IKK and reduces inflammation. Misexpression and inhibitors show involvement in insulin sensitization in obese rodents. Mutations in IKK-gamma are found in several immune deficiencies: hyper IgM syndrome, incontinentia pigmenti [embryonic lethal in males, defects in skin, hair, teeth in females] and hypohidrotic ectodermal dysplasia; recurrent infections and defects in teeth, hair, and sweat glands]. Inhibitors: CHS 828, NBD peptide, BMS-345541.
UniProt Protein Details:

Protein type:Protein kinase, Other; Kinase, protein; Protein kinase, Ser/Thr (non-receptor); EC 2.7.11.10; Other group; IKK family

Chromosomal Location of Human Ortholog: 10q24-q25

Cellular Component: nucleoplasm; internal side of plasma membrane; intracellular membrane-bound organelle; cytoplasm; IkappaB kinase complex; cytosol

Molecular Function:protein binding; protein homodimerization activity; IkappaB kinase activity; protein heterodimerization activity; ATP binding; protein kinase activity

Biological Process: lactation; skeletal muscle contraction; I-kappaB kinase/NF-kappaB cascade; nerve growth factor receptor signaling pathway; response to toxin; response to lipopolysaccharide; toll-like receptor 3 signaling pathway; osteoclast differentiation; T cell receptor signaling pathway; protein amino acid phosphorylation; Rho protein signal transduction; activation of NF-kappaB transcription factor; toll-like receptor 10 signaling pathway; toll-like receptor 5 signaling pathway; positive regulation of interferon type I production; morphogenesis of an epithelial sheet; inflammatory response; toll-like receptor 4 signaling pathway; epidermal growth factor receptor signaling pathway; response to drug; anatomical structure morphogenesis; positive regulation of I-kappaB kinase/NF-kappaB cascade; fibroblast growth factor receptor signaling pathway; phosphoinositide-mediated signaling; response to virus; MyD88-independent toll-like receptor signaling pathway; mammary gland epithelial cell proliferation; response to amino acid stimulus; odontogenesis of dentine-containing teeth; toll-like receptor 2 signaling pathway; MyD88-dependent toll-like receptor signaling pathway; response to hydroperoxide; toll-like receptor signaling pathway; striated muscle cell differentiation; innate immune response; immune response; positive regulation of transcription from RNA polymerase II promoter; toll-like receptor 9 signaling pathway; I-kappaB phosphorylation

Disease: Cocoon Syndrome

NCBI Summary:This gene encodes a member of the serine/threonine protein kinase family. The encoded protein, a component of a cytokine-activated protein complex that is an inhibitor of the essential transcription factor NF-kappa-B complex, phosphorylates sites that trigger the degradation of the inhibitor via the ubiquination pathway, thereby activating the transcription factor. [provided by RefSeq, Jul 2008]
UniProt Code:O15111
NCBI GenInfo Identifier:317373368
NCBI Gene ID:1147
NCBI Accession:O15111.2
UniProt Secondary Accession:O15111,O14666, Q13132, Q5W0I4, Q92467,
UniProt Related Accession:O15111

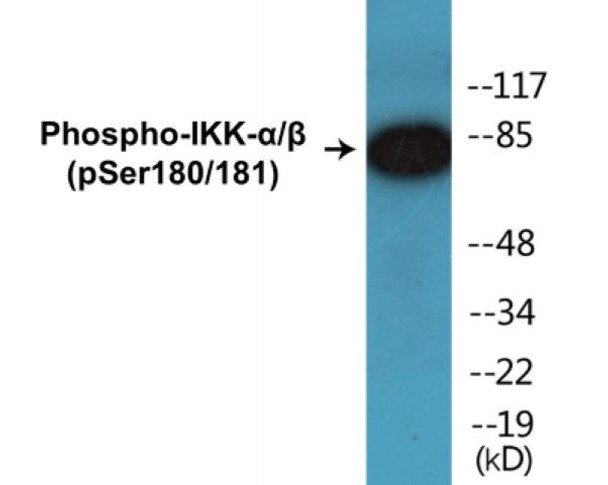

Molecular Weight:Calculated MW: 84kDaObserved MW: 85kDa
NCBI Full Name:Inhibitor of nuclear factor kappa-B kinase subunit alpha
NCBI Synonym Full Names:conserved helix-loop-helix ubiquitous kinase
NCBI Official Symbol:CHUK
NCBI Official Synonym Symbols:IKK1; IKKA; IKBKA; TCF16; NFKBIKA; IKK-alpha
NCBI Protein Information:inhibitor of nuclear factor kappa-B kinase subunit alpha; TCF-16; IKK-a kinase; I-kappa-B kinase 1; I-kappa-B kinase-alpha; transcription factor 16; IkB kinase alpha subunit; Nuclear factor NFkappaB inhibitor kinase alpha
UniProt Protein Name:Inhibitor of nuclear factor kappa-B kinase subunit alpha
UniProt Synonym Protein Names:Conserved helix-loop-helix ubiquitous kinase; I-kappa-B kinase 1; IKK1; Nuclear factor NF-kappa-B inhibitor kinase alpha; NFKBIKA; Transcription factor 16; TCF-16
Protein Family:Inhibitor of nuclear factor kappa-B kinase
UniProt Gene Name:CHUK
UniProt Entry Name:IKKA_HUMAN
ComponentQuantity
96-Well Cell Culture Clear-Bottom Microplate2 plates
10X TBS24 mL
Quenching Buffer24 mL
Blocking Buffer50 mL
15X Wash Buffer50 mL
Primary Antibody Diluent12 mL
100x Anti-Phospho Target Antibody 60 µL
100x Anti-Target Antibody60 µL
Anti-GAPDH Antibody60 µL
HRP-Conjugated Anti-Rabbit IgG Antibody12 mL
HRP-Conjugated Anti-Mouse IgG Antibody12 mL
SDS Solution12 mL
Stop Solution24 mL
Ready-to-Use Substrate12 mL
Crystal Violet Solution12 mL
Adhesive Plate Seals2 seals

The following materials and/or equipment are NOT provided in this kit but are necessary to successfully conduct the experiment:

  • Microplate reader able to measure absorbance at 450 nm and/or 595 nm for Crystal Violet Cell Staining (Optional)
  • Micropipettes with capability of measuring volumes ranging from 1 µL to 1 ml
  • 37% formaldehyde (Sigma Cat# F-8775) or formaldehyde from other sources
  • Squirt bottle, manifold dispenser, multichannel pipette reservoir or automated microplate washer
  • Graph paper or computer software capable of generating or displaying logarithmic functions
  • Absorbent papers or vacuum aspirator
  • Test tubes or microfuge tubes capable of storing ≥1 ml
  • Poly-L-Lysine (Sigma Cat# P4832 for suspension cells)
  • Orbital shaker (optional)
  • Deionized or sterile water

*Note: Protocols are specific to each batch/lot. For the correct instructions please follow the protocol included in your kit.

StepProcedure
1.Seed 200 µL of 20,000 adherent cells in culture medium in each well of a 96-well plate. The plates included in the kit are sterile and treated for cell culture. For suspension cells and loosely attached cells, coat the plates with 100 µL of 10 µg/ml Poly-L-Lysine (not included) to each well of a 96-well plate for 30 minutes at 37°C prior to adding cells.
2.Incubate the cells for overnight at 37°C, 5% CO2.
3.Treat the cells as desired.
4.Remove the cell culture medium and rinse with 200 µL of 1x TBS, twice.
5.Fix the cells by incubating with 100 µL of Fixing Solution for 20 minutes at room temperature. The 4% formaldehyde is used for adherent cells and 8% formaldehyde is used for suspension cells and loosely attached cells.
6.Remove the Fixing Solution and wash the plate 3 times with 200 µL 1x Wash Buffer for five minutes each time with gentle shaking on the orbital shaker. The plate can be stored at 4°C for a week.
7.Add 100 µL of Quenching Buffer and incubate for 20 minutes at room temperature.
8.Wash the plate 3 times with 1x Wash Buffer for 5 minutes each time.
9.Add 200 µL of Blocking Buffer and incubate for 1 hour at room temperature.
10. Wash 3 times with 200 µL of 1x Wash Buffer for 5 minutes each time.
11.Add 50 µL of 1x primary antibodies Anti-IKK-alpha/beta (Phospho-Ser180/181) Antibody, Anti-IKK-alpha/beta Antibody and/or Anti-GAPDH Antibody) to the corresponding wells, cover with Parafilm and incubate for 16 hours (overnight) at 4°C. If the target expression is known to be high, incubate for 2 hours at room temperature.
12.Wash 3 times with 200 µL of 1x Wash Buffer for 5 minutes each time.
13.Add 50 µL of 1x secondary antibodies (HRP-Conjugated AntiRabbit IgG Antibody or HRP-Conjugated Anti-Mouse IgG Antibody) to corresponding wells and incubate for 1.5 hours at room temperature.
14.Wash 3 times with 200 µL of 1x Wash Buffer for 5 minutes each time.
15.Add 50 µL of Ready-to-Use Substrate to each well and incubate for 30 minutes at room temperature in the dark.
16.Add 50 µL of Stop Solution to each well and read OD at 450 nm immediately using the microplate reader.

(Additional Crystal Violet staining may be performed if desired – details of this may be found in the kit technical manual.)
