Human TLR2 / Toll-like receptor 2 ELISA Kit
- SKU:
- HUFI00260
- Product Type:
- ELISA Kit
- Size:
- 96 Assays
- Uniprot:
- O60603
- Sensitivity:
- 0.188ng/ml
- Range:
- 0.313-20ng/ml
- ELISA Type:
- Sandwich ELISA, Double Antibody
- Synonyms:
- TLR2, CD282, CD282 antigen, TIL4CD282, toll, interleukin 1 receptor-like 4, Toll, interleukin-1 receptor-like protein 4
- Reactivity:
- Human
Description
| Product Name: | Human TLR2 / Toll-like receptor 2 ELISA Kit |
| Product Code: | HUFI00260 |
| Size: | 96 Assays |
| Alias: | TLR2, CD282, CD282 antigen, TIL4CD282, toll, interleukin 1 receptor-like 4, Toll, interleukin-1 receptor-like protein 4 |
| Detection method: | Sandwich ELISA, Double Antibody |
| Application: | This immunoassay kit allows for the in vitro quantitative determination of Human TLR2 concentrations in serum plasma and other biological fluids. |
| Sensitivity: | 0.188ng/ml |
| Range: | 0.313-20ng/ml |
| Storage: | 4°C for 6 months |
| Note: | For Research Use Only |
| Recovery: | Matrices listed below were spiked with certain level of Human TLR2 and the recovery rates were calculated by comparing the measured value to the expected amount of Human TLR2 in samples. | ||||||||||||||||
| |||||||||||||||||

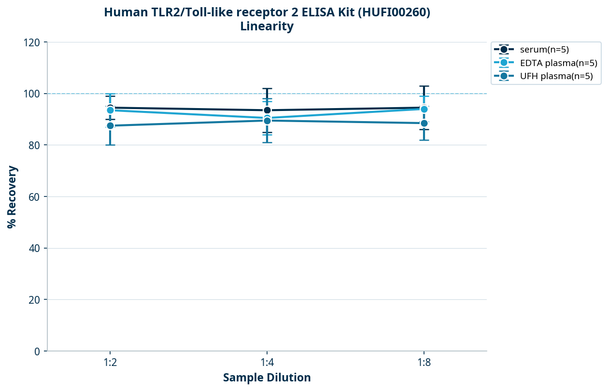

| Linearity: | The linearity of the kit was assayed by testing samples spiked with appropriate concentration of Human TLR2 and their serial dilutions. The results were demonstrated by the percentage of calculated concentration to the expected. | ||||||||||||||||
| |||||||||||||||||
| CV(%): | Intra-Assay: CV<8% Inter-Assay: CV<10% |
| Component | Quantity | Storage |
| ELISA Microplate (Dismountable) | 8×12 strips | 4°C for 6 months |
| Lyophilized Standard | 2 | 4°C/-20°C |
| Sample/Standard Dilution Buffer | 20ml | 4°C |
| Biotin-labeled Antibody(Concentrated) | 120ul | 4°C (Protect from light) |
| Antibody Dilution Buffer | 10ml | 4°C |
| HRP-Streptavidin Conjugate(SABC) | 120ul | 4°C (Protect from light) |
| SABC Dilution Buffer | 10ml | 4°C |
| TMB Substrate | 10ml | 4°C (Protect from light) |
| Stop Solution | 10ml | 4°C |
| Wash Buffer(25X) | 30ml | 4°C |
| Plate Sealer | 5 | - |
Other materials and equipment required:
- Microplate reader with 450 nm wavelength filter
- Multichannel Pipette, Pipette, microcentrifuge tubes and disposable pipette tips
- Incubator
- Deionized or distilled water
- Absorbent paper
- Buffer resevoir
| Uniprot | O60603 |
| UniProt Protein Function: | TLR2: Cooperates with LY96 to mediate the innate immune response to bacterial lipoproteins and other microbial cell wall components. Cooperates with TLR1 to mediate the innate immune response to bacterial lipoproteins or lipopeptides. Acts via MYD88 and TRAF6, leading to NF-kappa-B activation, cytokine secretion and the inflammatory response. May also promote apoptosis in response to lipoproteins. Recognizes mycoplasmal macrophage- activating lipopeptide-2kD (MALP-2), soluble tuberculosis factor (STF), phenol-soluble modulin (PSM) and B.burgdorferi outer surface protein A lipoprotein (OspA-L) cooperatively with TLR6. Interacts with LY96, TLR1 and TLR6 (via extracellular domain). Binds MYD88 (via TIR domain). Interacts with TICAM1. Ligand binding induces the formation of a heterodimer with TLR1. Interacts with CNPY3. Highly expressed in peripheral blood leukocytes, in particular in monocytes, in bone marrow, lymph node and in spleen. Also detected in lung and in fetal liver. Levels are low in other tissues. Belongs to the Toll-like receptor family. |
| UniProt Protein Details: | Protein type:Membrane protein, integral; Apoptosis; Motility/polarity/chemotaxis; Cell surface; Receptor, misc. Chromosomal Location of Human Ortholog: 4q32 Cellular Component: cell surface; cell projection; integral to plasma membrane; cytoplasm; plasma membrane; external side of plasma membrane Molecular Function:peptidoglycan binding; protein binding; transmembrane receptor activity; triacylated lipoprotein binding; protein heterodimerization activity; lipopolysaccharide receptor activity; receptor activity; pattern recognition receptor activity; diacylated lipoprotein binding Biological Process: positive regulation of nitric oxide biosynthetic process; apoptosis; positive regulation of interleukin-12 production; response to toxin; positive regulation of leukocyte migration; microglial cell activation; leukotriene metabolic process; positive regulation of NF-kappaB import into nucleus; response to molecule of fungal origin; detection of triacylated bacterial lipoprotein; positive regulation of interleukin-18 production; signal transduction; nitric oxide metabolic process; positive regulation of interleukin-10 production; response to insulin stimulus; activation of NF-kappaB transcription factor; positive regulation of interleukin-8 production; negative regulation of cell proliferation; lipopolysaccharide-mediated signaling pathway; positive regulation of interferon-beta production; positive regulation of oligodendrocyte differentiation; inflammatory response; toll-like receptor 4 signaling pathway; positive regulation of Wnt receptor signaling pathway; positive regulation of tumor necrosis factor biosynthetic process; negative regulation of interleukin-12 production; detection of diacylated bacterial lipoprotein; cell surface pattern recognition receptor signaling pathway; positive regulation of interleukin-6 production; positive regulation of tumor necrosis factor production; positive regulation of toll-like receptor signaling pathway; positive regulation of chemokine production; toll-like receptor 2 signaling pathway; MyD88-dependent toll-like receptor signaling pathway; induction by symbiont of defense-related host nitric oxide production; defense response to Gram-positive bacterium; negative regulation of interleukin-17 production; myelin formation in the central nervous system; response to hypoxia; toll-like receptor signaling pathway; innate immune response; positive regulation of transcription from RNA polymerase II promoter; immune response; response to progesterone stimulus; I-kappaB phosphorylation; chloramphenicol transport; positive regulation of cytokine secretion; positive regulation of nitric-oxide synthase biosynthetic process; positive regulation of inflammatory response Disease: Leprosy, Susceptibility To, 3; Mycobacterium Tuberculosis, Susceptibility To |
| NCBI Summary: | The protein encoded by this gene is a member of the Toll-like receptor (TLR) family which plays a fundamental role in pathogen recognition and activation of innate immunity. TLRs are highly conserved from Drosophila to humans and share structural and functional similarities. They recognize pathogen-associated molecular patterns (PAMPs) that are expressed on infectious agents, and mediate the production of cytokines necessary for the development of effective immunity. The various TLRs exhibit different patterns of expression. This gene is expressed most abundantly in peripheral blood leukocytes, and mediates host response to Gram-positive bacteria and yeast via stimulation of NF-kappaB. [provided by RefSeq, Jul 2008] |
| UniProt Code: | O60603 |
| NCBI GenInfo Identifier: | 20140434 |
| NCBI Gene ID: | 7097 |
| NCBI Accession: | O60603.1 |
| UniProt Secondary Accession: | O60603,O15454, Q8NI00, B3Y612, D1CS45, D1CS48, D1CS49 |
| UniProt Related Accession: | O60603 |
| Molecular Weight: | 89,838 Da |
| NCBI Full Name: | Toll-like receptor 2 |
| NCBI Synonym Full Names: | toll-like receptor 2 |
| NCBI Official Symbol: | TLR2Â Â |
| NCBI Official Synonym Symbols: | TIL4; CD282Â Â |
| NCBI Protein Information: | toll-like receptor 2 |
| UniProt Protein Name: | Toll-like receptor 2 |
| UniProt Synonym Protein Names: | Toll/interleukin-1 receptor-like protein 4; CD_antigen: CD282 |
| Protein Family: | Toll-like receptor |
| UniProt Gene Name: | TLR2Â Â |
| UniProt Entry Name: | TLR2_HUMAN |
*Note: Protocols are specific to each batch/lot. For the correct instructions please follow the protocol included in your kit.

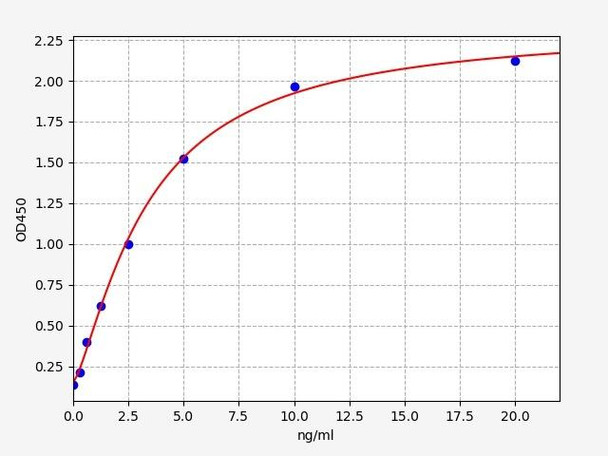

Before adding to wells, equilibrate the SABC working solution and TMB substrate for at least 30 min at 37°C. When diluting samples and reagents, they must be mixed completely and evenly. It is recommended to plot a standard curve for each test.
| Step | Protocol |
| 1. | Set standard, test sample and control (zero) wells on the pre-coated plate respectively, and then, record their positions. It is recommended to measure each standard and sample in duplicate. Wash plate 2 times before adding standard, sample and control (zero) wells! |
| 2. | Aliquot 0.1ml standard solutions into the standard wells. |
| 3. | Add 0.1 ml of Sample / Standard dilution buffer into the control (zero) well. |
| 4. | Add 0.1 ml of properly diluted sample ( Human serum, plasma, tissue homogenates and other biological fluids.) into test sample wells. |
| 5. | Seal the plate with a cover and incubate at 37 °C for 90 min. |
| 6. | Remove the cover and discard the plate content, clap the plate on the absorbent filter papers or other absorbent material. Do NOT let the wells completely dry at any time. Wash plate X2. |
| 7. | Add 0.1 ml of Biotin- detection antibody working solution into the above wells (standard, test sample & zero wells). Add the solution at the bottom of each well without touching the side wall. |
| 8. | Seal the plate with a cover and incubate at 37°C for 60 min. |
| 9. | Remove the cover, and wash plate 3 times with Wash buffer. Let wash buffer rest in wells for 1 min between each wash. |
| 10. | Add 0.1 ml of SABC working solution into each well, cover the plate and incubate at 37°C for 30 min. |
| 11. | Remove the cover and wash plate 5 times with Wash buffer, and each time let the wash buffer stay in the wells for 1-2 min. |
| 12. | Add 90 µl of TMB substrate into each well, cover the plate and incubate at 37°C in dark within 10-20 min. (Note: This incubation time is for reference use only, the optimal time should be determined by end user.) And the shades of blue can be seen in the first 3-4 wells (with most concentrated standard solutions), the other wells show no obvious color. |
| 13. | Add 50 µl of Stop solution into each well and mix thoroughly. The color changes into yellow immediately. |
| 14. | Read the O.D. absorbance at 450 nm in a microplate reader immediately after adding the stop solution. |
When carrying out an ELISA assay it is important to prepare your samples in order to achieve the best possible results. Below we have a list of procedures for the preparation of samples for different sample types.
| Sample Type | Protocol |
| Serum | If using serum separator tubes, allow samples to clot for 30 minutes at room temperature. Centrifuge for 10 minutes at 1,000x g. Collect the serum fraction and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles. If serum separator tubes are not being used, allow samples to clot overnight at 2-8°C. Centrifuge for 10 minutes at 1,000x g. Remove serum and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles. |
| Plasma | Collect plasma using EDTA or heparin as an anticoagulant. Centrifuge samples at 4°C for 15 mins at 1000 × g within 30 mins of collection. Collect the plasma fraction and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles. Note: Over haemolysed samples are not suitable for use with this kit. |
| Urine & Cerebrospinal Fluid | Collect the urine (mid-stream) in a sterile container, centrifuge for 20 mins at 2000-3000 rpm. Remove supernatant and assay immediately. If any precipitation is detected, repeat the centrifugation step. A similar protocol can be used for cerebrospinal fluid. |
| Cell culture supernatant | Collect the cell culture media by pipette, followed by centrifugation at 4°C for 20 mins at 1500 rpm. Collect the clear supernatant and assay immediately. |
| Cell lysates | Solubilize cells in lysis buffer and allow to sit on ice for 30 minutes. Centrifuge tubes at 14,000 x g for 5 minutes to remove insoluble material. Aliquot the supernatant into a new tube and discard the remaining whole cell extract. Quantify total protein concentration using a total protein assay. Assay immediately or aliquot and store at ≤ -20 °C. |
| Tissue homogenates | The preparation of tissue homogenates will vary depending upon tissue type. Rinse tissue with 1X PBS to remove excess blood & homogenize in 20ml of 1X PBS (including protease inhibitors) and store overnight at ≤ -20°C. Two freeze-thaw cycles are required to break the cell membranes. To further disrupt the cell membranes you can sonicate the samples. Centrifuge homogenates for 5 mins at 5000xg. Remove the supernatant and assay immediately or aliquot and store at -20°C or -80°C. |
| Tissue lysates | Rinse tissue with PBS, cut into 1-2 mm pieces, and homogenize with a tissue homogenizer in PBS. Add an equal volume of RIPA buffer containing protease inhibitors and lyse tissues at room temperature for 30 minutes with gentle agitation. Centrifuge to remove debris. Quantify total protein concentration using a total protein assay. Assay immediately or aliquot and store at ≤ -20 °C. |
| Breast Milk | Collect milk samples and centrifuge at 10,000 x g for 60 min at 4°C. Aliquot the supernatant and assay. For long term use, store samples at -80°C. Minimize freeze/thaw cycles. |
